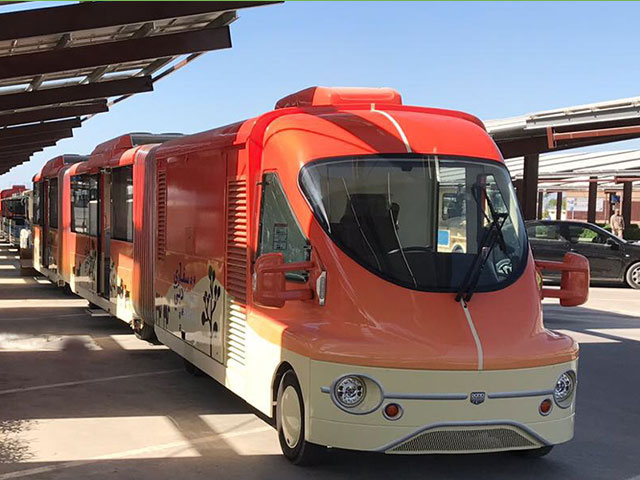

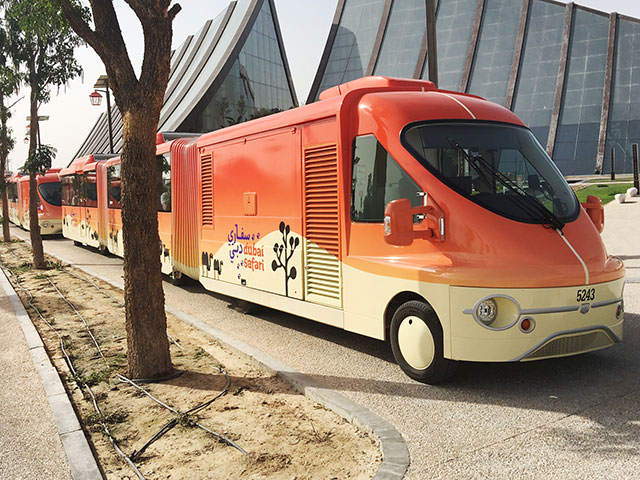

Dottobus Enclosed Euro 6

LOCOMOTIVE:

Length 5700 mm

Width 1855 mm

Height 2530 mm or 2700 mm with AC

Wheelbase 3600 mm

Unladen weight 4800 kg -5100 kg

Max speed empty on flat road 25 km/h

______________________________________________________________

COACH:

Length 5470 mm

Width 1880 mm

Height 2770 mm with AC

Wheelbase 3780 mm

Unladen weight 2200 kg

LOCOMOTIVE:

CHASSIS
Reinforced steel.

SUSPENSION
Leaf spring front suspension, air rear suspension.

ENGINE
Diesel Euro 6 IVECO F1C, 4-cylinder turbocharged direct injection common rail, displacement: 3000 cm ³ with EGR, diesel particulate filter, SCR, water-cooled, 150 Hp at 3500 rpm.

TRANSMISSION
Automatic Allison 2500 series, with 5 gears forward + reverse (ratios: 3.51:1 ; 1.90:1 ; 1.44:1 ; 0.74:1 ; retromarcia: 5.09:1)

BRAKES
hydraulic disc brakes with double circuit servo brake according to EEC 98/12.

BODYWORK
Reinforced fiberglass with gelcoat colours, insulates fiberglass panels, aluminium structure and adhesive graphics.

___________________________________________________________________________________

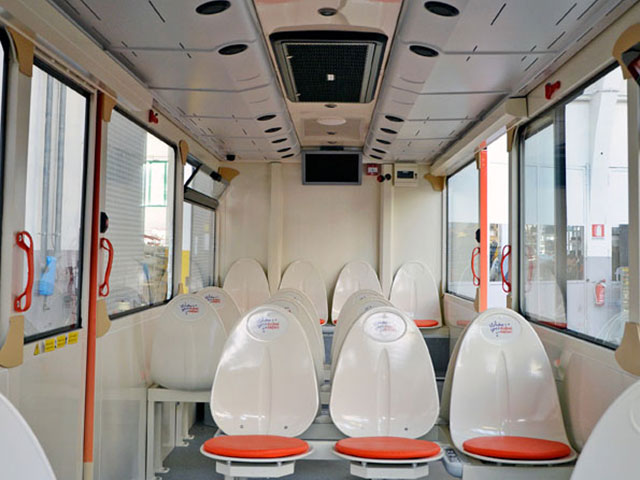

COACH:

CHASSIS
Galvanized steel.

SUSPENSION
Self-levelling front and rear air suspension with hydraulic shock absorbers.

BRAKES
Pneumo-hydraulic disc brakes, dual circuit. Emergency/hand brake: pneumatic spring.

BODY
Fiberglass and insulating material sandwich panel with gelcoat colours. Adhesive graphics applied.

CAPACITY
28 persons.

Complete sound system with CD player and microphone
Multilingual system and USB port
Video broadcast system with DVD, MP3, in the cabin and a monitor in the coaches
CCTV system
Air conditioning
Heating
CAN BUS system for control of electric system
